Metero 350 Part number
Metero 350. Lubrication System. Part number
hwasal
2024. 6. 4. 11:00
반응형
메테오350 윤활시스템 파츠 번호

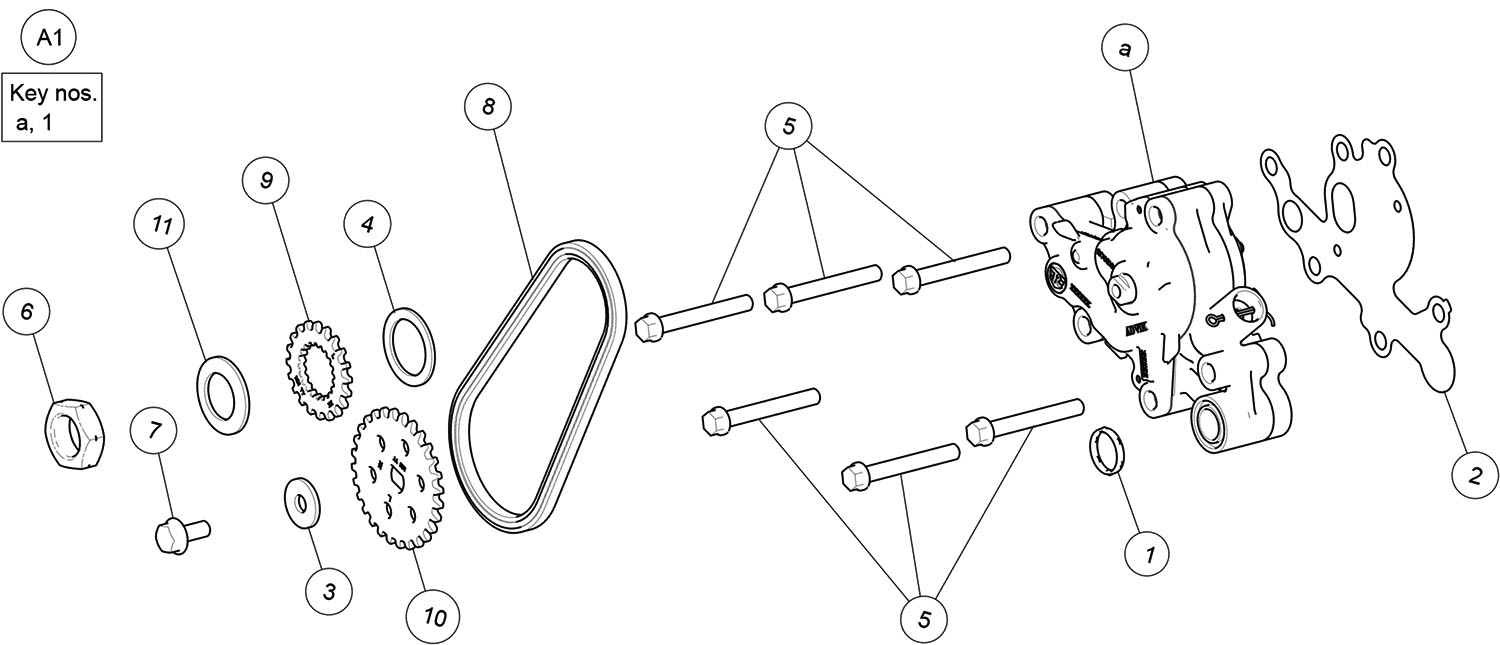

| KEY NO. | Part Number | Description | MOQ |
| A1 | 1570103/C | OIL PUMP ASSY (WITH PRV) | 1 |
| 1 | RLN00008/C | SEAL | 1 |
| 2 | 1570104/C | GASKET-OIL PUMP | 1 |
| 3 | 1570106/B | WASHER | 1 |
| 4 | 1570283/B | WASHER | 1 |
| 5 | 572019/B | HEX FLANGE BOLT M6x1-6g x 45, 10.9 | 6 |
| 6 | 574101/D | NUT -M18-LH | 1 |
| 7 | H6901018/C | BOLT, HHF, M6 X 14, 10.9, L | 1 |
| 8 | RLN00028/B | CHAIN-OIL PUMP | 1 |
| 9 | RLN00029/B | SPROCKET-OIL PUMP DRIVE | 1 |
| 10 | RLN00030/B | SPROCKET-OIL PUMP DRIVEN | 1 |
| 11 | RLN00031/A | WASHER - OIL PUMP DRIVE | 1 |
