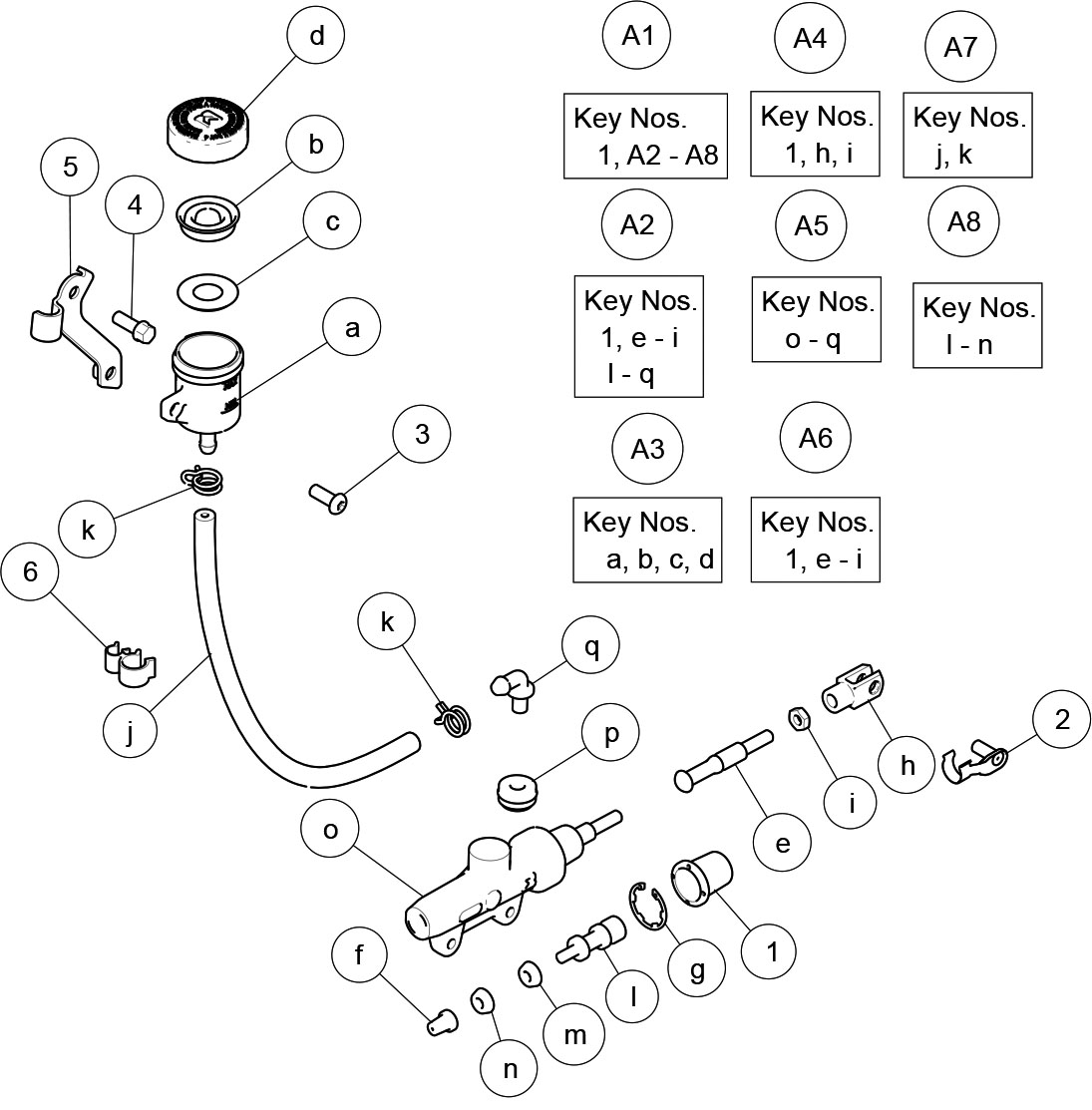

메테오350 뒤 마스터 실린터 파츠 번호
| KEY NO. | Part Number | Description | MOQ |
| A1 | 1100728/D | MASTER CYLINDER ASSEMBLY-REAR | 1 |
| A2 | 1100729/D | MASTER CYLINDER-REAR | 1 |
| A3 | 148707/A | BRAKE RESERVOIR, REAR, ASSEMBLY | 1 |
| A4 | KAB00234/A | FORK KIT | 1 |
| A5 | KAB00236/A | CONNECTOR KIT | 1 |
| A6 | KAB00252/A | PUSHROD+R.RING+C.CLIP+L.NUT+BOOT+FORK | 1 |
| A7 | KAB00235/A | RESERVOIR TUBE KIT | 1 |
| A8 | KAB00238/A | PISTON ASSEMBLY | 1 |
| 1 | RAB00243/A | BOOT | 1 |
| 2 | RAB00137/D | CLEVIS SPRING PIN-REAR MASTER CYLINDER | 1 |
| 3 | 594046/B | HEX SOCKET BUTTON HEAD M6X1 SCREW | 6 |
| 4 | 586042/A | FLANGED HEXOGANAL BOLT M6X1 X 20 | 10 |
| 5 | RAB00169/A | RESERVOIR BRACKET ASSEMBLY | 1 |
| 6 | RAB00201/A | W CLIP | 1 |
