메테오350 앞 쇼바 파츠 넘버
| KEY NO | Part Number | Description | MOQ | |
| A1 | 1100248/D | FRONT FORK-LH | 1 | |
| A2 | 1100249/D | FRONT FORK-RH | 1 | |
| A3 | 1100276/A | STEERING STEM ASSY | 1 | |
| A4 | KAA00067/A | Fork Pipe Spinning Replacement Kit | 1 | |
| A5 | KAA00066/A | Main spring fork repair Kit | 1 | |
| A6 | KAA00065/A | Fork Outer tube RH sub assy kit | 1 | |
| A7 | KAA00064/A | Fork Outer tube LH sub assy kit | 1 | |
| A8 | KAA00074/A | Ball Race Kit | 1 | |
| A9 | KAA00078/A | Fork Outer tube Kit | 1 | |
| A10 | KAA00080/A | Fork Oil Seal, ‘O’-Ring & Piston Ring Ki | 1 | |
| A11 | KAA00081/A | Fork Oil Seal & dust seals | 1 | |
| 1 | RAH00136/A | FORK O RING | 1 | |
| 2 | RAH00138/A | MAIN SPRING FORK | 1 | |
| 3 | RAH00139/A | DUST SEAL | 1 | |
| 4 | RAH00140/A | OIL SEAL FORK | 1 | |
| 5 | RAH00141/A | PLAIN WASHER FORK | 1 | |
| 6 | RAH00145/A | COPPER PACKING FORK | 1 | |
| 7 | RAH00146/A | PINCH BOLT J!A/B | 1 | |
| 8 | RAH00187/A | FORK PIPE SPINNING | 1 | |
| 9 | RAH00188/B | FORK BOLT | 1 | |
| 10 | RAH00191/A | FORK SPACER TUBE | 1 | |
| 11 | RAH00238/A | WASHER | 1 | |
| 12 | RAH00239/A | OIL SEAL STOPPER | 1 | |
| 13 | RAH00240/A | GUIDE BUSH | 1 | |
| 14 | RAH00241/A | PISTON RING | 1 | |
| 15 | RAH00242/A | REBOUND SPRING | 1 | |
| 16 | RAH00243/A | SLIDE BUSH | 1 | |
| 17 | RAH00245/A | CAP OIL LOCK | 1 | |
| 18 | RAH00285/A | SEAT PIPE | 1 | |
| 19 | RAH00189/A | FORK TUBE LH | 1 | |
| 20 | RAH00186/A | PINCH BOLT | 1 | |
| 21 | RAH00190/A | FORK TUBE RH | 1 | |
| 22 | 1100261/C | BALL BEARING CONE-TOP YOKE | 1 | |
| 23 | 1100258/C | BALL BEARING CUP- BOTTOM YOKE | 1 | |
| 24 | 1100392/A | BOTTOM SEAL-HEADSTOCK BEARING | 1 | |
| 25 | 148702/C | SPLIT RING, CRS-25 | 1 | |
| 26 | 1100393/A | TOP SEAL-HEADSTOCK BEARING | 1 | |
| 27 | 1100429/B | TOP YOKE | 1 | |
| 28 | 584065/A | STEERING STEM BALL CAGE | 1 | |
| 29 | 586006/A | HEX.SOCKET HD.CAP SCREW,M8x30 | 10 | |
| 30 | H6901053/C | BOLT, HHF, M10 X 60, 8.8, WHT | 1 | |
| 31 | RAH00125/C | TOP COVER - HEAD TUBE | 1 | |
| 32 | RAH00200/A | RING NUT | 1 | |
| 33 | RAH00202/A | WASHER M20 | 1 | |
| 34 | RAH00203/A | NUT M20X1 | 1 | |
| 35 | RAH00221/A | STEERING CAP | 1 | |
| 36 | RAH00259/A | REFLEX REFLECTOR WITH BASE | 1 | |
| 37 | RAL00036/A | BOTTOM RISER | 1 | |
| 38 | RAL00037/B | TOP RISER | 2 | |
728x90
반응형
'Metero 350 Part number' 카테고리의 다른 글

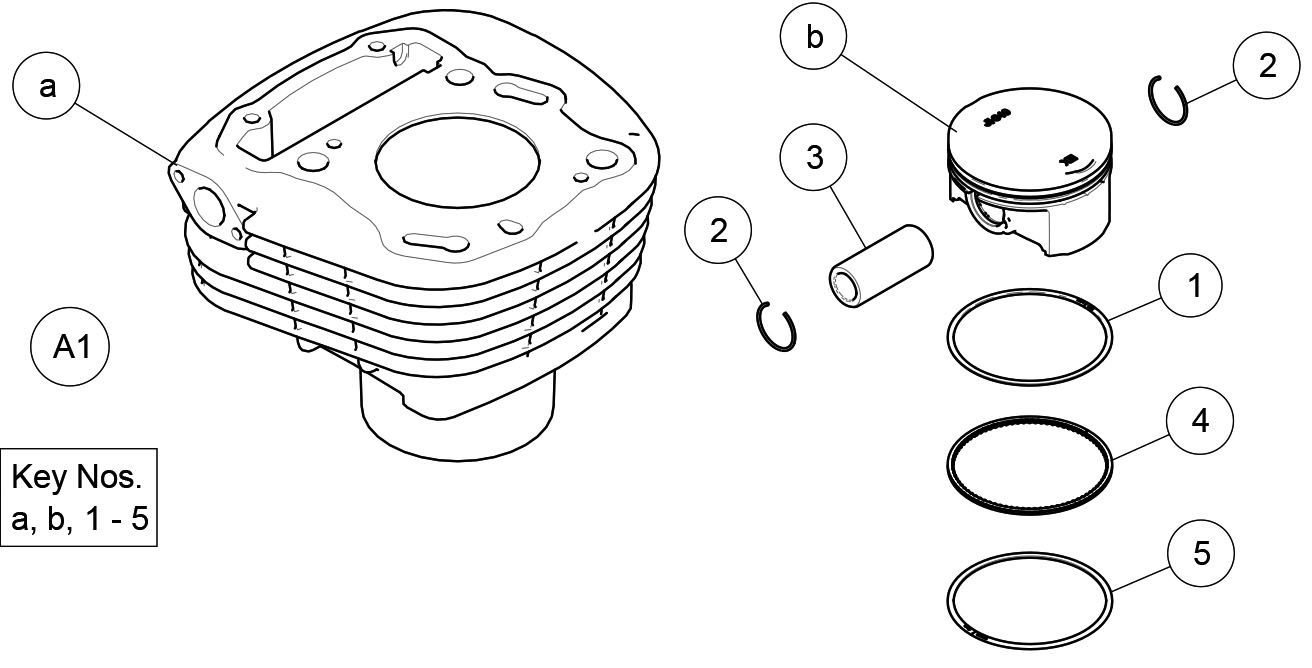

| Metero 350. Piston and Cylinder Barrel. Part number (0) | 2024.06.04 |
|---|---|

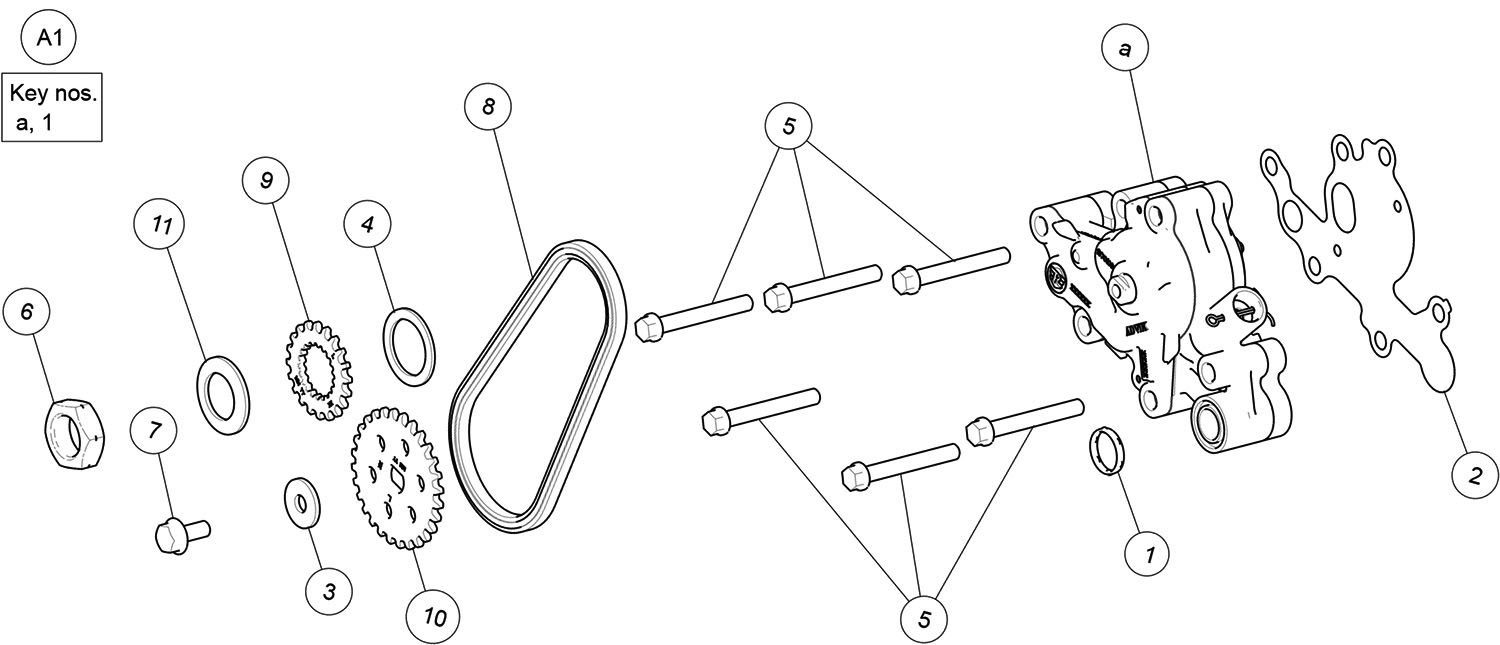

| Metero 350. Lubrication System. Part number (0) | 2024.06.04 |

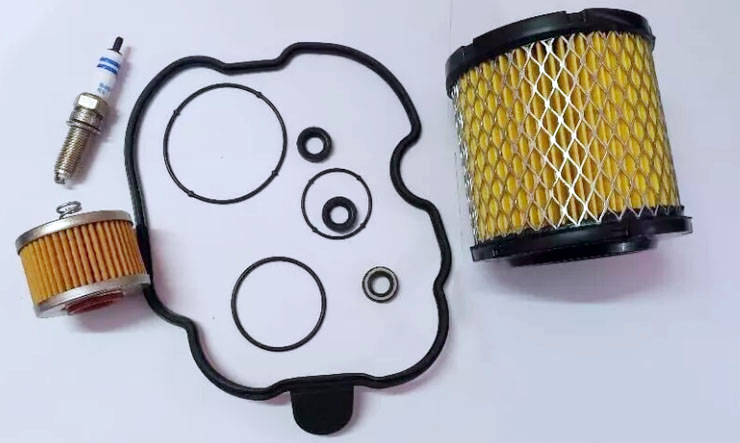

| Metero350. Classic350. Hunter350. Bullet350. Scheduled Service Kits (0) | 2024.06.04 |

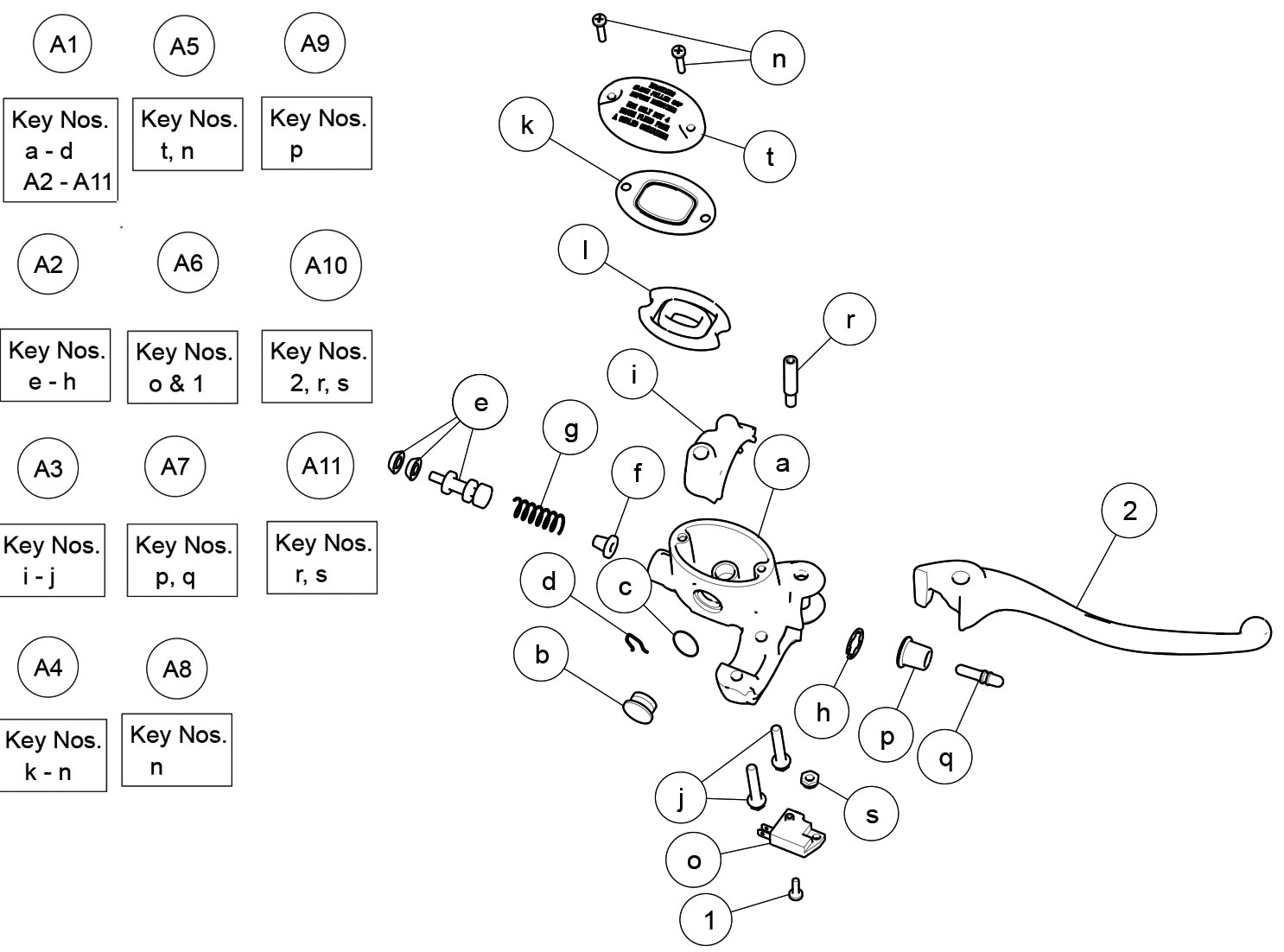

| Metero 350. Front Master Cylinder. Part number (0) | 2024.06.03 |

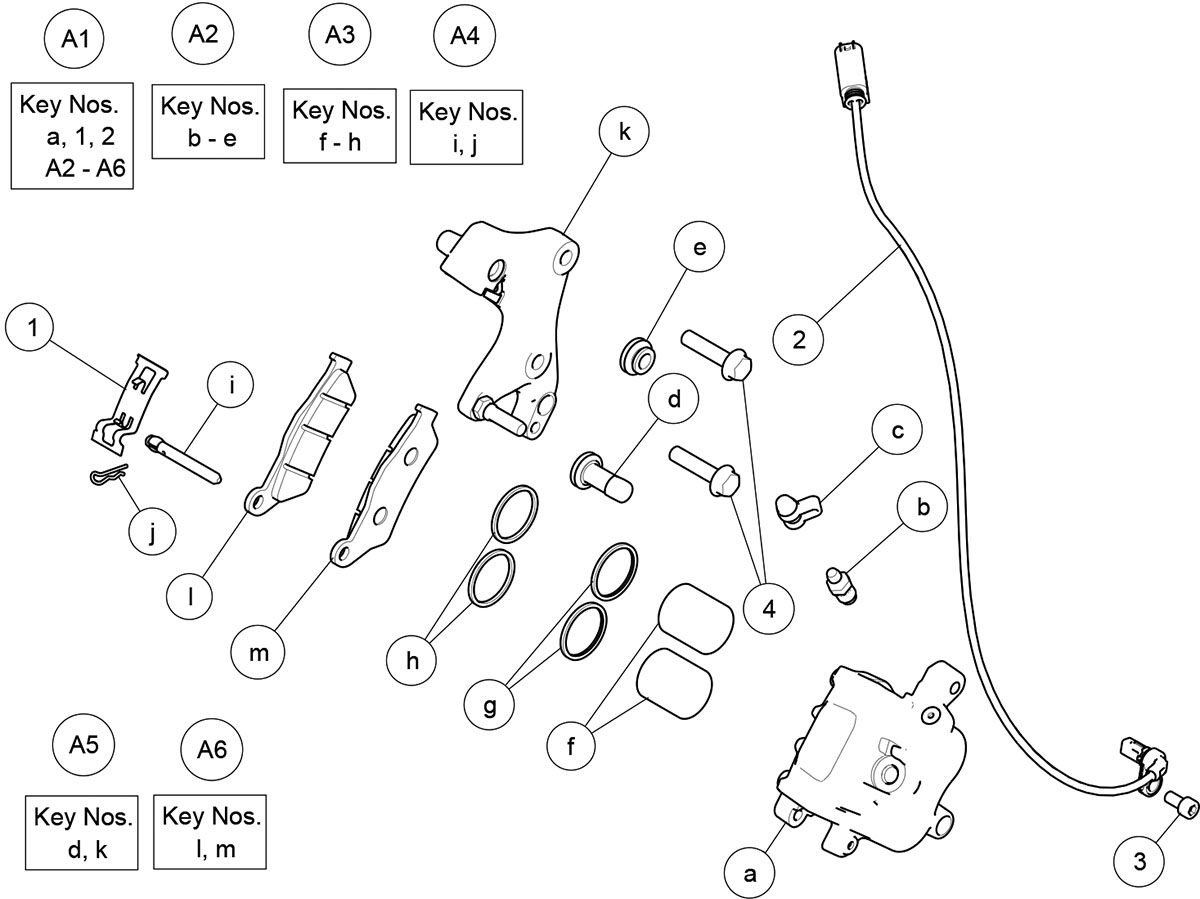

| Metero 350. Front Caliper. Part number (0) | 2024.06.03 |
