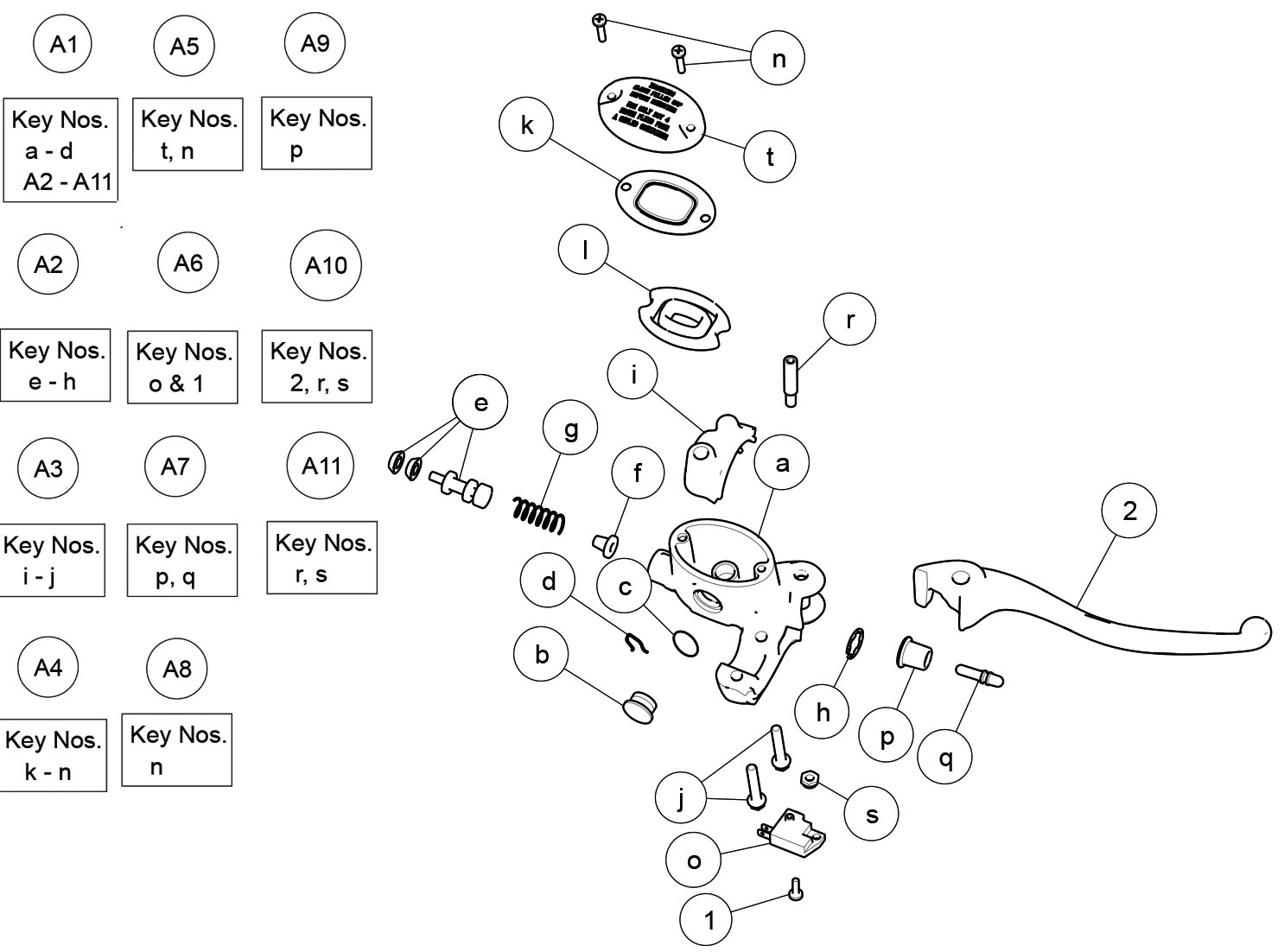

메테오350. 프론트 마스터 실린터 파츠 번호
| A1 | RAB00355/B | FRONT MASTER CYLINDER ASSY - POLISHED |
| A2 | KAB00247/A | PISTON ASSY+SPRING RETAINER+SPRING |
| A3 | KAB00229/A | CLAMP+SCREWS |
| A4 | KAB00227/B | CAP AND DIAPHRAM KIT |
| A5 | KAB00226/B | CAP+SCREWS |
| A6 | KAB00228/A | MICROSWITCH+SCREWS |
| A7 | KAB00230/A | BOOT+PUSHROD |
| A8 | KAB00231/A | CAP SCREWS |
| A9 | KAB00232/A | CLAMP SCREWS |
| A10 | KAB00249/A | LEVER(CLEAR COATED)+PIN+NUT |
| A11 | KAB00233/A | LEVER PIN+NUT |
| 1 | RAB00270/A | SCREW |
| 2 | RAB00357/B | FRONT BRAKE LEVER - POLISHED |
